Cables de alimentación y juegos de cables GlobTek ha introducido un nuevo selector de cable de alimentación, una interfaz fácil de buscar con todas las especificaciones de nuestros productos Conjunto de cables de energía conforme a las normas internacionales. Usted puede reducir los criterios de búsqueda basados ​​en el tipo cuchilla, tipo de cable, número de conductores, estándar eléctrico, tensión o corriente máxima.

Conjunto de cables de Selector

Para mas información Input Cord Options

Stock Power Supply Cords

Part Number/ Link

Country

Plug

Termination

Length (mm)

(Ft)

3 Conductors (Grounded) IEC 320/C13

3021457F701(R)

N. American

NEMA 5-15P

IEC 320/C13

2150

7

1191068F0701(R)

N. American

NEMA 5-15P Hospital

IEC 320/C13

2459

8

2194272M5701-T(R)

Argentina

IRAM 2073

IEC 320/C13

2500

8

5502022M5701A(R)

Australian

AS3112 / 3 PRONG

IEC 320/C13

2500

8

204B4272M5701(R)

Brazil

BRAZILIAN; WS-002

IEC 320/C13

2500

8

6023602M5701(R)

China

CCC GR2099

IEC 320/C13

2500

8

G8014272M5701(R)

Danish

AFSNIT SECTION 107-2-D1

IEC 320/C13

2500

8

23144272M5701-T(R)

Europe

CEE 7/7

IEC 320/C13

2500

8

377C4272M5701(R)

Israel

ISL 377C

IEC 320/C13

2500

8

23024272M5701(R)

Italy

CEI 23-16/VII

IEC 320/C13

2500

8

3003068F2701-HK(R)

Japan

JIS 8303 / 3 PINS

IEC 320/C13

2500

8

2313K3432M5701(R)

Korea

KS C 8305

IEC 320/C13

2500

8

5804272M5701(R)

Russia

GOST 7396

IEC 320/C13

2500

8

2084272M5701(R)

S. Africa

S. African

IEC 320/C13

2500

8

23214272M5701(R)

Switzerland

SEV 1011 ( EL 203)

IEC 320/C13

2500

8

3003322M5701(R)

Taiwan

BSMI

IEC 320/C13

2500

8

PZ0800100-2M5BK13H(R

UK

BS 1363A

IEC 320/C13

2500

8

7055002M5701A(R)

International

IEC 320 C14-C13

IEC 320/C13

2500

8

3 Conductors (Grounded) IEC 320/C5 (Mickey Mouse)

3021066F712(R)

N. American

NEMA 5-15P

IEC 320/C5

1880

6

1191068F0712(R)

N. American

NEMA 5-15P Hospital

IEC 320/C5

2459

8

2064262M0712(R)

Australian

AS3112 / 3 PRONG

IEC 320/C5

2050

7

204B4262M0712(R)

Brazil

BRAZILIAN; WS-002

IEC 320/C5

2050

7

6023592M5712(R)

China

CCC GR2099

IEC 320/C5

2500

8

23144262M0712(R)

Europe

CEE 7/7

IEC 320/C5

2050

7

2084262M0712(R)

India/S.Africa

India/S.Africa

IEC 320/C5

2050

7

23024262M0712(R)

Italy

CEI 23-16/VII

IEC 320/C5

2050

7

3003316F0712(R)

Japan

JIS 8303 / 3 PINS

IEC 320/C5

1830

6

23214262M0712(R)

Switzerland

SEV 1011 ( EL 203)

IEC 320/C5

2050

7

6104262M0712(R)

UK

BS1363

IEC 320/C5

2050

7

2 Conductors (No Ground) IEC 320/C7 (Figure "8")

4511116F703A(R)

N. American

NEMA 1-15P

IEC 320/C7

1830

6

5014112M703A(R)

Australian

AS 3112

IEC 320/C7

2000

7

4533501M8703(R)

China

GB 2099.1

IEC 320/C7

1830

6

2074112M703A(R)

European

CEE 7/16

IEC 320/C7

2000

7

451J3401M8703(R)

Japan

JIS 8303

IEC 320/C7

1830

6

6104112M703A(R)

UK

BS1363

IEC 320/C7

2000

7

Conjuntos de Cables Novedades de Productos

  • En respuesta a una necesidad del cliente para una apariencia limpia y profesional y una vida útil muy fiable, GlobTek creó un derecho mecanizado de moldes ángulo para una clavija de barril femenino... Manufacturadas personalizadas ángulo recto conector barril hembra disponible para montaje de cable y alambre arneses diseñados para integrarse sin problemas en los sistemas de los clientes o GlobTek cargadores inteligentes
  • GlobTek released USB Cable USBA1M2MICROB20(R) to address the high current capability required to deliver greater or equal to 5% voltage regulation on it’s 2.0A and 3.2A power supplies. The cables features... High Current Capability USB cords support +/-5% voltage regulation on GlobTek 2.0 and 3.2A USB Power Supply Adapters, USBA1M2MICROB20(R)
  • GlobTek Stocks various types of DC Power Plug Extension cables for a wide variety of applications. Some of the most commons stocked items are:

LFB11851M0LMB(R): 2.5mm x 5.5 DC Power Plug Extension Cable... DC Power Plug Extension Cable/Cord for 5.5 x 2.5, 5.5 x 2.1, or conversion from Inner diameter 2.5mm to 2.1mm or vice versa
  • GlobTek’s Plenum low voltage DC power cable C00CMPCL2P6F722G2364 features off-white 2 Conductor 18 AWG STRANDED, SHIELDED, ROUND CABLE with UL CMP or CL2P PLENUM RATED FLUOROCOPOLYMER TYPE wire with... Plenum low voltage DC power cable for building wiring of electrical devices goes into volume production C00CMPCL2P6F722G2364
  • GlobTek’s 2 Conductor IEC 320/C7 cordsets are approved to international safety agency requirements. Designs are available in various lengths, cable types, conductor gauge, termination, and jacket color. Power Cords Detachable for International Applications
  • 2-3 Conductor IEC International Detachable Power Cordsets are approved to international safety agency requirements. Designs are available in various lengths, cable types, conductor gauge, termination,... Power Cordsets International Detachable

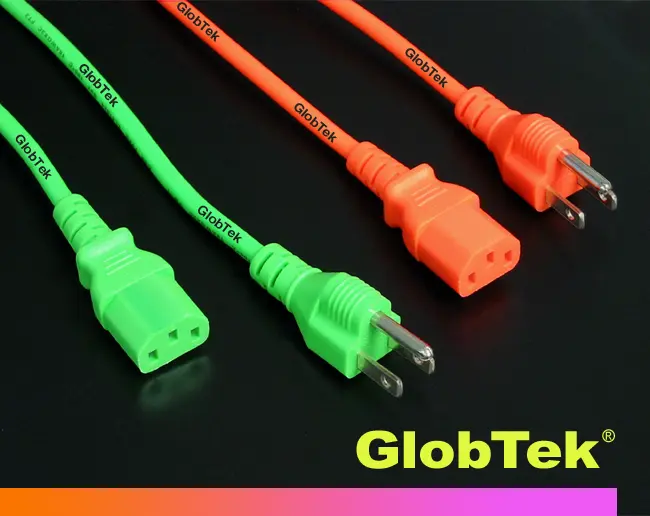

  • International Power Cordsets are now available in Fluorescent colors. These cordsets are approved to international safety agency requirements. Designs are available in various lengths, cable types, conductor... International Power Cordset Go Fluorescent
  • YP-18 family of right angle hospital detachable power cordsets feature: low profile exit from the wall receptacle, compliance with CA Proposition 65, overmolded 360° strain/flex relief available in 45... Medical Grade Power Cordset Right Angle
  • 2 Conductor IEC 320/C7 International Detachable Power Cordset. These cordsets are approved to international safety agency requirements. GlobTek’s designs are available in various lengths, cable types,... Power Cordset International Detachable Low Cost (2) Conductor IEC 320/C7
  • This wide range of international power cordsets are approved to international safety agency requirements. Designs are available in various lengths, cable types, conductor gauge, termination, and jacket... International Power Cordset
